Thông tin chi tiết sản phẩm:
|
| Tên sản phẩm: | cảm biến laser khuếch tán | Cảm biến khoảng cách: | 30-500mm (có thể điều chỉnh) |
|---|---|---|---|
| Điện áp hoạt động: | 10-30V DC | Danh mục bảo vệ: | IP55 |
| Nhiệt độ hoạt động: | 0oC…+55oC | Chứng nhận: | CE RoHS |

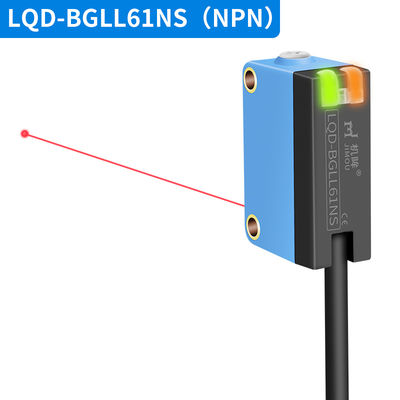

| LQD-BGLL61NS/LQD-BGL61PS Diffuse Laser sensor | |||||

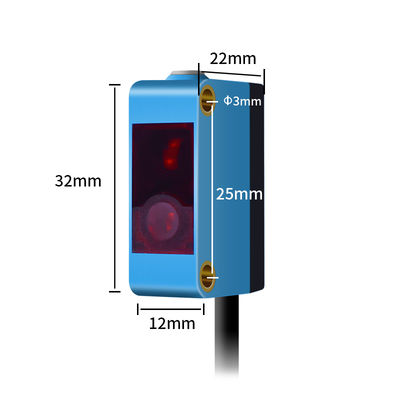

| Size | 32*12*22mm | ||||

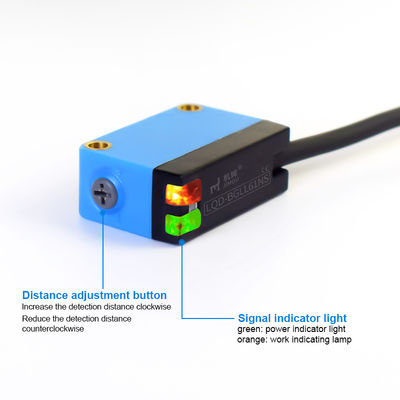

| Sensing distance | 30-500mm(adjustable) | ||||
| Standard detection object | 100*100mm White card | ||||
| Light source | 650nm Red light | ||||
| Light spot size | About 3mm | ||||
| Housing material | PC | ||||
| With LED | Orange LED/Green LED | ||||
| Mode | NPN N.O./N.C | LQD-BGLL61NS(Background suppression) | |||
| PNP N.O./N.C. | LQD-BGLL61PS(Background suppresion) | ||||
| Operating voltage | 10-30V DC | ||||
| No load current | <15mA | ||||
| Max.load curent | 150mA | ||||
| Leakage current | <0.01mA | ||||
| Voltage drop | <1.5V | ||||
| Switching frequency | 100Hz | ||||
| Response time | 5ms | ||||
| Switching hysteresis | <10%(Sr) | ||||
| Repeat accuracy | <5%(Sr) | ||||
| Protection category | IP55 | ||||
| Operating temperature | 0℃…+55℃ | ||||
| Temperature drift | <10%(Sr) | ||||
| Shortcicuit protection | Yes | ||||
| Overload trip point | 170mA | ||||
| Connection | φ3.8 2M PVC cable,4*0.15mm² | ||||
| Weight | About 43.0g | ||||
| Certification | CE RoHS | ||||
