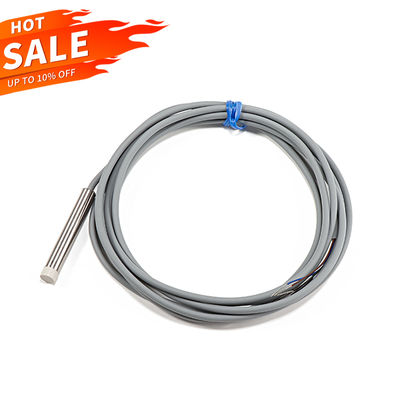

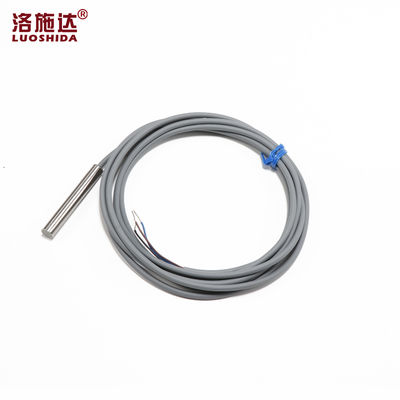

Loushida D6.5 3-wire 1mm 8mm Non/flush Mount Capacitive Proximity Sensor with NPN/PNP Outputs for Metal Detection
Specification of the sensor :
| D6.5 3-wire Capacitive Proximity Sensor |
| Size |
D6.5*45 |
D6.5*45 |
| Mounting |
shielded |
Non-shielded |
| Sensing Distance Sn(mm) |
1mm |
2mm |
| Housing Material |
Stainless steel |
Stainless steel |
| With or Without LED |
● with yellow LED |
| Operating Voltage |
10-30VDC |
| Ripple |
<10% |
| No Load Current |
<10mA |
| Max.Load Current |
150mA |
| Leakage Current |
<0.01mA |
| Voltage Drop |
<1.5V |
| Switching Frequency |
100Hz |
80Hz |
| Response Time |
1.5ms |
1.5ms |
| Switching Hysteresis |
<15%(Sr) |
| Repeat Accuracy |
<5.0%(Sr) |
| Protection Category |
IP67 |
| Operating Temperature |
-25°C... +70°C |
| Temperature Drift |
<15%(Sr) |
| Short Circuit Protection |
YES |
| Overload Trip Point |
280mA |
| Sensing surface material |
PBT |
| Weight |
About 29.9g |
About 28.7g |
| Certificates |
CE RoHS |
| Connection |
D3.0mm 2M PVC cable 3*0.15mm |
Founded in 2012, Luoshida is a high-tech enterprise dedicated to the R&D, production, sales and service of sensors. Its core products cover a wide range of types, including inductive/capacitive proximity sensors, laser displacement sensors, through-beam/diffuse-reflective photoelectric sensors, fiber optical sensors, and color mark sensors, which are widely applied in industrial automation, smart manufacturing and electronic equipment.
All products are developed and produced in line with IEC standards. They have passed strict tests (EMC, IP, vibration impact, high-low temperature) and obtained EU CE certification and ROHS compliance.
With a team of experienced technicians, Luoshida adheres to the concept of "people-oriented, integrity, quality first, customer first". It provides customers with international-standard products, fast technical support and customized solutions.
Looking forward, Luoshida will continue to focus on technological progress, contributing to global industrial intelligent upgrading.
Shipping ways
* Our normal shipping way is international express, such as DHL,FEDEX, TNT and so on;
* When the gross weight is over 45kg, air transportation is also a good way for the customers to save some cost;
* Sea transportation is also can be considered, but only appointed agent acceptable.
Payment term and delivery time
* Generaly speaking, 30% deposit in advance, balance paid before the shipping;
* Sometimes the paypal payment method is also ok if the total amount is less than 500USD, such as sample fee.
Delivery time
* the sensors will be shipped out in 3 days when we receive the payment if we have stocks;
* If no stocks, the delivery time will be 7-10days when we received the PO or deposit.
After-sales services
* The warranty period is 12 months
* If we send the wrong parts to you, free replacement will be available
* As for the installation of the parts. if you have any questions, please do not hesitate to contact us at any time.
